PixelSensor™ multispectral sensors use exclusive on-chip filtering to pack up to 8 wavelength selective photodiodes into a compact 9 x 9 mm array format for simpler and smaller optical devices. One PixelSensor™ replaces multiple components, helping OEMs shrink multi-wavelength instruments for applications including in vitro diagnostics, biochemical assays, solar radiation and colorimetry applications.

Download Now: Breakthrough Sensor for PCR at Point-of-Care

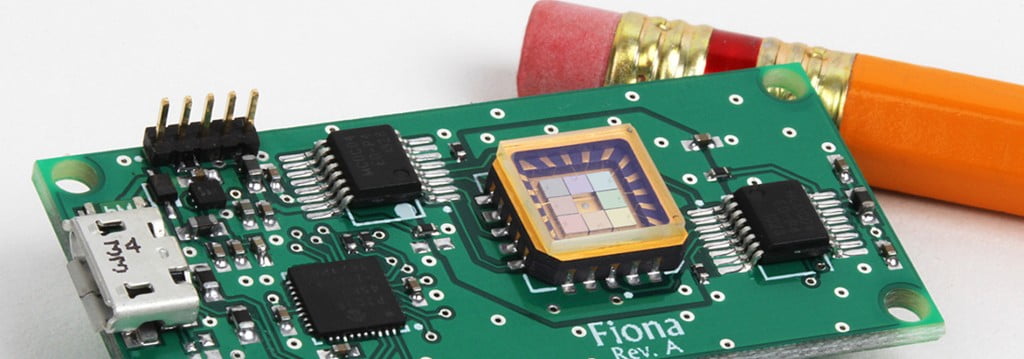

PixelSensor’s unique, wafer-level optical filters split the spectrum into 8 discrete color bands and suppress out-of-band background light, improving contrast and sensitivity. Customized OEM versions are available with user-defined spectral bands. With narrowband VIS-NIR selectivity, the sensor arrays are available both with and without an OEM electronics board. The OEM electronics board is designed for easy integration into customers’ analytical equipment and provides a smaller footprint (45.72 x 21.34 mm) and faster time-to-market than traditional sensor technology, offering a cost-effective solution. The parallel channel design results in no moving parts and faster measurements than discrete optics designs and spectrometers. Designed for low noise and fast response time, the 20-pin LCC package can be surface or socket mounted.

The optional PixelSensor™ OEM electronics board and accessories and simple-to-use software interface provide designers with tools for rapid prototyping and development – to help quickly move your device from concept to scalable production.


  • 8-band sensor array in 9 x 9 mm footprint
  • Available with or without OEM electronics board (45.72 x 21.34 mm)
  • Simplified optics for miniaturized devices
  • Narrow band VIS-NIR selectivity (400-1010 nm)

Customizable Options

  • Optical filter specification
  • Number of channels
  • Package type
  • Breakout board & light guide tube accessories


  • Biomedical instrumentation
  • Color meters & monitors
  • Industrial sorting & sensing
  • Portable optical sensors
  • OEM multispectral devices
  • Solar radiation (PAR)
